BSD532-6000 color screen
Keywords:Water Quality Instrument丨Environmental monitoring Instruments
BSD532-6000 color screen Details
Product Overview
The BSD532-6000 Industrial Online pH/ORP Controller is a microprocessor-based water quality monitoring and control instrument.Compatible with various pH/ORP electrodes.Widely used in power plants, petrochemicals, metallurgy, mining, papermaking, biopharmaceuticals, food & beverage, environmental water treatment, aquaculture, modern agriculture, etc.Continuously monitors and controls pH, ORP, and temperature of aqueous solutions.
Product Features
▪LCD large screen color liquid crystal display
▪Intelligent menu operation
▪Data recording & Curve display
▪Multiple automatic calibration functions
▪Differential signal measurement mode, stable and reliable
▪Manual and automatic temperature compensation
▪Three groups of relay control switches
▪Multiple output methods: 4-20mA and RS485
▪The same interface displays pH/ORP, temperature, current, etc
▪Password protection can be set to prevent misoperation by non-staff members

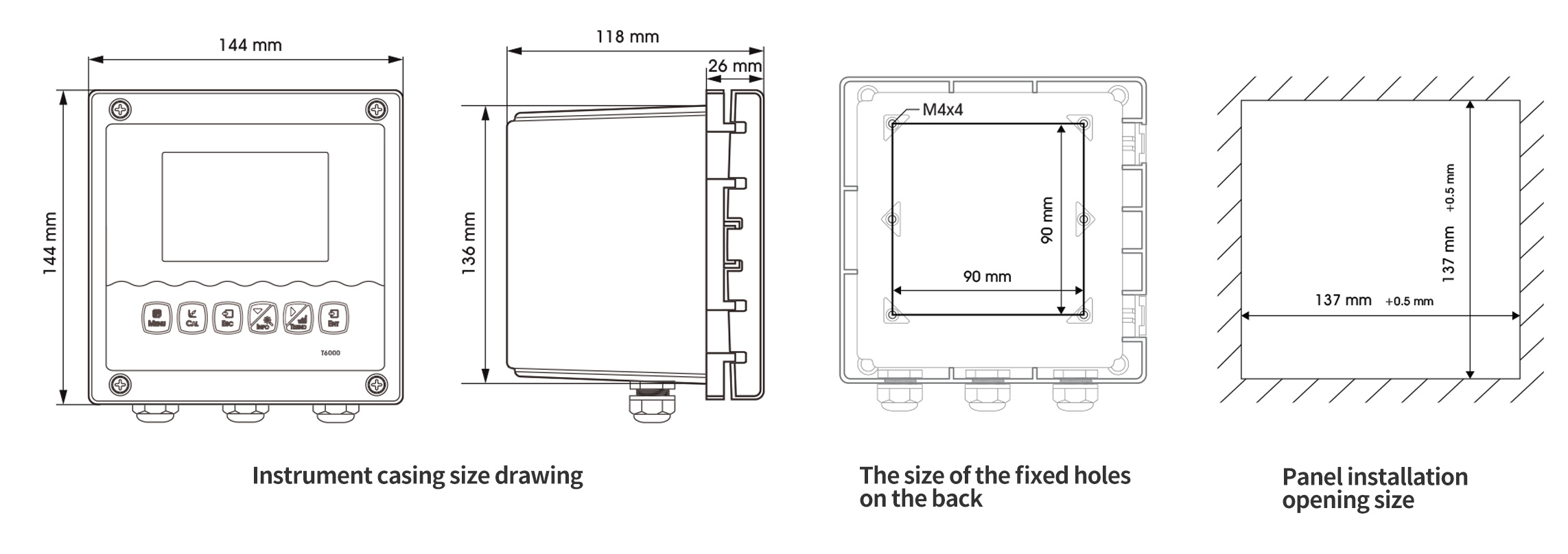

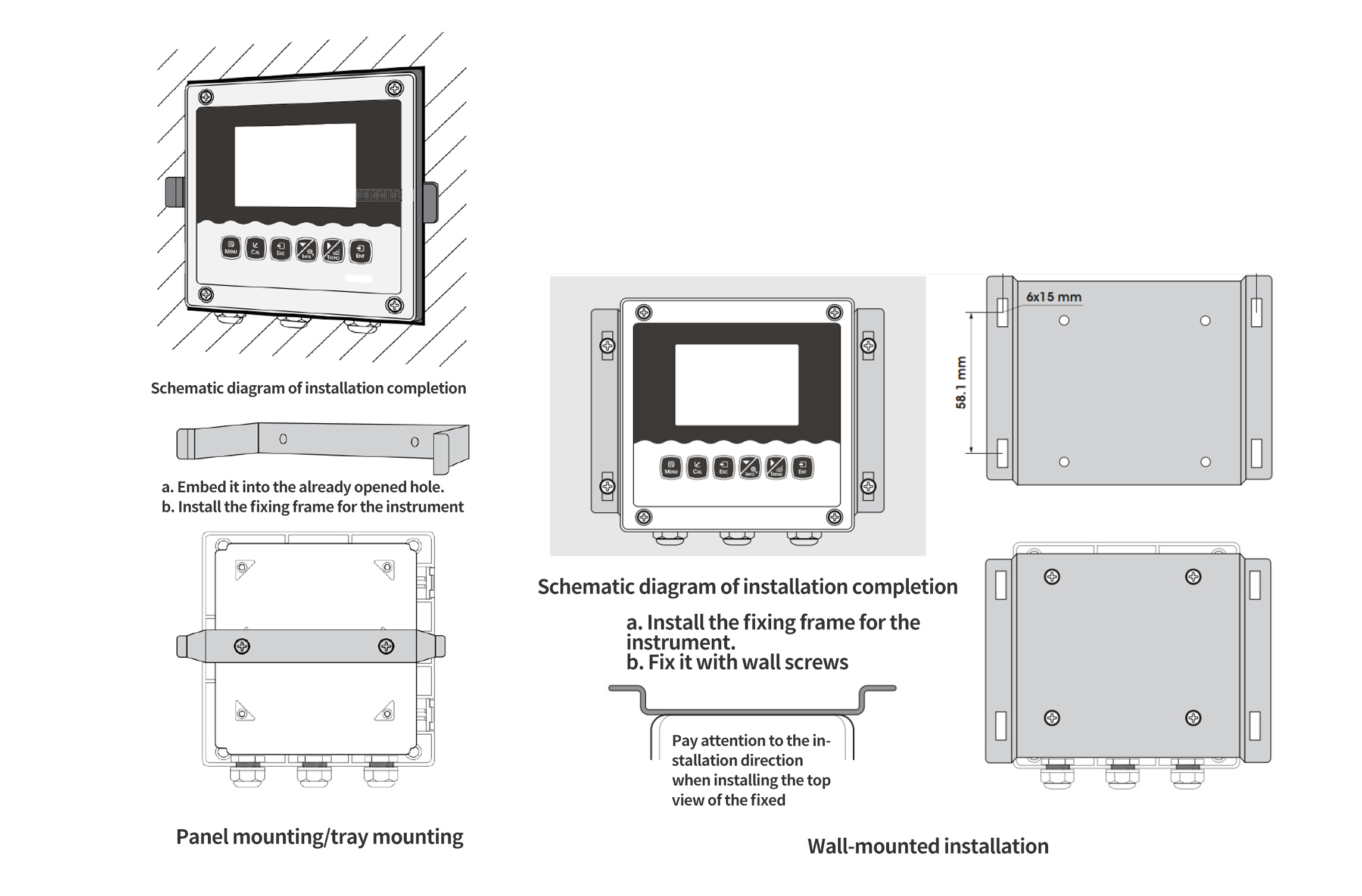

Installation
Specifications
Parameter |
Configuration |
Measurement Range |
pH: -2~16.00 pH;ORP: -2000~+2000 mV;Temperature: -10~150.0°C |
Resolution |
pH: 0.01 pH;ORP: 1 mV;Temperature: 0.1°C |
Basic Error |
pH: ±0.01 pH;ORP: ±1 mV;Temperature: ±0.3°C |
Stability |
pH: ≤0.01 pH/24h; ORP: ≤1 mV/24h |
Output 2-channel current |
0/4~20mA(Load resistance <500Ω);20-4mA(load resistance <500Ω) |
Communication output |
RS485 MODBUS RTU |
Three sets of relay control contacts |
5A 250VAC,5A,30VDC
|
Power supply (optional) |
85-265VAC±10%,50±1Hz, power ≤3W;9-36VDC, power :≤3W |
Dimensions |
144×144×118mm |
Embedded opening size |
137x137mm |
Protection |
IP65 |
Instrument weight |
0.8kg |
Instrument working environment |
Ambient temperature :-10 to 60° C Relative humidity: No more than 90%. There is no strong magnetic field interference around except for the Earth's magnetic field |

Company Profile
Huper Labsun Instrument (Jiangsu) Co., Ltd. is a professional company dedicated to the field of environmental monitoring and related monitoring instruments, process control instruments and other products. The company's instrument products are more complete than the peers, covering a wide range. Mainly includes: water quality process instrument series, various transmitter series, level, liquid level detection series, flow meter series, switch slip ring series, gas detection series, water analysis instrument series, flue gas related products, etc.
We know that the pursuit of perfect quality and service, pay attention to meet the challenge has been the root of the continuous development of modern environmental protection. Enterprises can only develop better under the premise of protecting the environment. Therefore, since the establishment of our company, we will protect the environment on which we live as the first purpose of business establishment, in order to make the sky more blue, make the mountains more green, make the water more clear silently do their own efforts. The excellent advanced technology and customers to achieve a win-win goal, and constantly explore a win-win road to environmental protection and efficiency.
Company vision: To become an internationally renowned water quality testing solution service expert!
Certifications



FAQ
Q1: What about your delivery time? And how do you delivery the goods?
A: Yes, We design and manufacture our products by ourselves. We can make OEM according to your requirements, including packing, logo print etc.
Q2: Can you offer OEM or design services?
A: Yes, We design and manufacture our products by ourselves. We can make OEM according to your requirements, including packing, logo print etc.
Q3: How does your factory do regarding QC?
A: Quality is priority. We have many years of experience in the water treatment industry.We always consider quality as the most important thing during the whole production process.Our factory has gained ISO9001.
Q4: What's your main producs?
A: Multi parameter, PH / ORP Meter, electrical conductivity meter, dissolved oxygen meter, turbidity meter, residual chlorine analyzer, COD/BOD analyzer, level meter, flow meter and other water quality analyzer.
Q5: Where is it often used?
A: our products are widely used in Wastewater treatment, Thermophilic Fermentation, Pow plant of steam and water analysis system,Drinking water plant, Swimming pool, Shrimp and fish farming. we provide a complete water quality monitoring solution.
