MDE822-6500 color screen Details
Product Overview
The MDE822-6500 Industrial Online pH/ORP Meter is a microprocessor-based water quality online monitoring and control instrument. Equipped with pH or ORP electrodes, it is widely used in power plants, petrochemical industries, metallurgy, mining, papermaking, bioprocessing, pharmaceuticals, food and beverage, environmental water treatment, aquaculture, modern agriculture, and other sectors. It provides continuous monitoring and control of pH (acidity/alkalinity), ORP (oxidation-reduction potential), and temperature in aqueous solutions.
Key Features
Large color LCD display | Three relay control switches | |||||||||||||||
Intelligent menu operation | High/low limit control with hysteresis adjustment | |||||||||||||||
Data logging & curve display | 4-20mA & RS485 output options | |||||||||||||||
Multiple automatic calibration functions | Simultaneous display of pH/ORP, temperature, and current on a single interface | |||||||||||||||
Differential signal measurement mode for stable performance | Password protection to prevent unauthorized operation | |||||||||||||||
Manual/automatic temperature compensation |
Installation

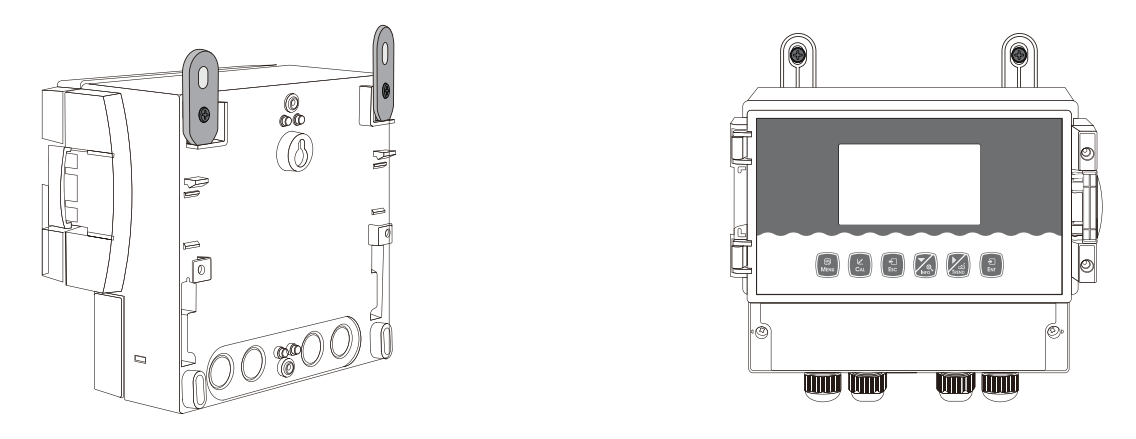

Install the fixture on the instrument | Installation completion diagram |

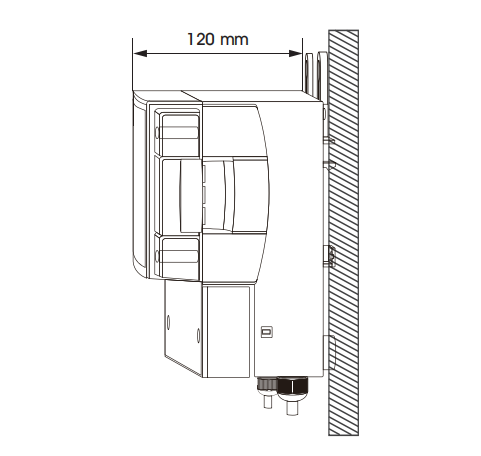

Wall-mounted |

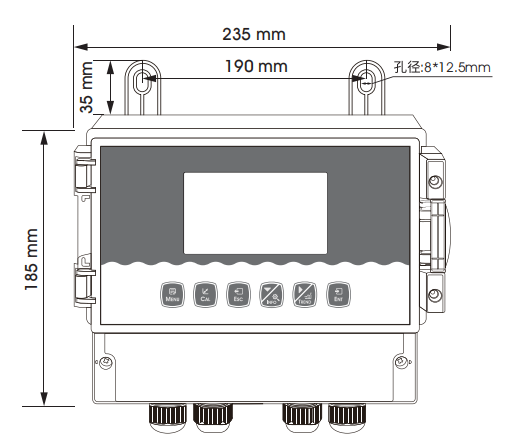

Instrument shape, wall mounting plate size
(Instrument housing dimensions)
Technical Specifications
Parameter | Configuration | |||
Measurement Range | pH: -2.00–16.00 pH; | |||
ORP: -2000–+2000 mV | ||||
Temperature: -10.0–150.0°C | ||||
Resolution | pH: 0.01 pH | |||
ORP: 1 mV | ||||
Temperature: 0.1°C | ||||
Basic Accuracy | pH: ±0.01 pH | |||
ORP: ±1 mV | ||||
Temperature: ±0.3°C | ||||
Stability | pH: ≤0.01 pH/24h | |||
ORP: ≤1 mV/24h | ||||
2 Current Output | 0/4–20 mA (Load resistance <500Ω) | |||
20–4 mA (Load resistance <500Ω) | ||||
Communication Output | RS485 MODBUS RTU | |||
3 sets of Relay Control | 5A 250VAC ,5A 30VDC | |||
Power Supply | 85–265VAC ±10%, 50Hz±1Hz, ≤3W | |||
9–36VDC, ≤3W | ||||
Dimensions | 235 × 185 × 120 mm | |||
Installation | Wall-mounted | |||
Protection Class | IP65 | |||
Weight | 1.5 kg | |||
Operating Environment | Temperature: -10–60°C | |||
Humidity: ≤90% RH | ||||
No strong magnetic interference (except Earth’s field) |
