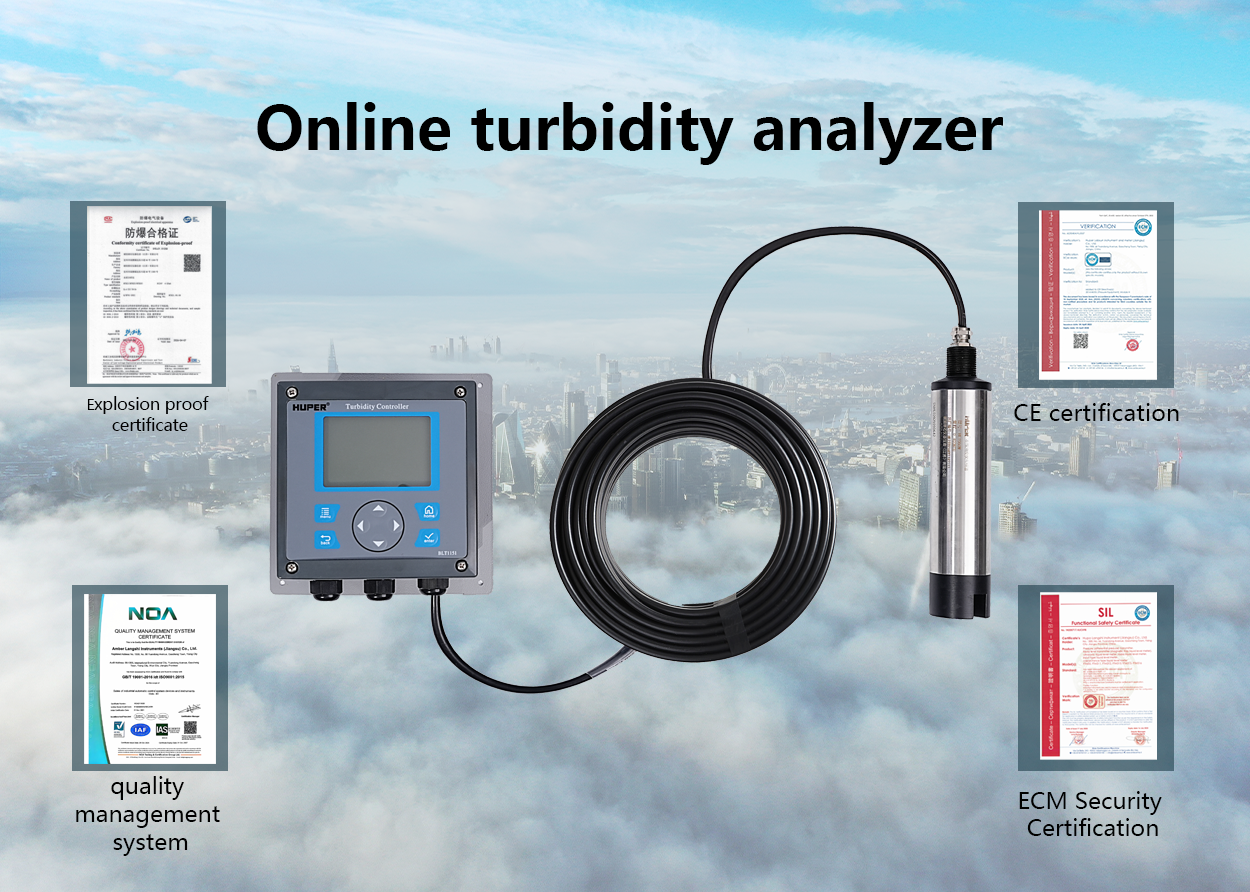

Online turbidity analyzer BSD296+PCM238
Keywords:Water Quality Instrument丨Environmental monitoring Instruments
Online turbidity analyzer BSD296+PCM238 Details
Product Parameter
Model | BSD296+PCM238 |
Name | Online turbidity analyzer |
Brand | Huper |
Transmitter Model | BSD296;MDE828 |
Adaptive Sensor (Electrode) | 10-400NTU:PCM238-A;10-2000NTU:PCM238-B; 10-4000NTU:PCM238-C Ultra-low turbidity 0.01-400NTU:PCM239+BLT161 |
Power Supply | 85~265VAC or 9~36VDC,≤3W |
Type and number of channels | Connection type: four-wire system, sensor input channels: single channel |
Relay Output | BSD Series transmitters: three sets of 5A 240VAC/5A 28VDC or 120VAC;MDE series transmitters: Three sets of 5A 240VAC/5A 28VDC or 120VAC |
Signal Output | BSD series transmitters: Standard 2-way 4-20mA, 1-way RS485 Modbus RTU;MDE series transmitters: Two 4-20mA channels and one RS485 Modbus RTU are standard |
Overall Size | BSD series transmitter: 144*144*118mm;MDE series transmitter: 215*125*80mm |
Hole Size | BSD series transmitter: 138*138mm;MDE series transmitter: none |
Environment Temperature | -10 ~ 60℃; Relative humidity: ≤90%; There is no strong magnetic field interference except the Earth's magnetic field |
Meter Weight | BSD series transmitter: 0.8kg;MDE series transmitter: 1.5kg |
Installation | BSD series transmitters: 1 disc mounted (embedded), 2 cabinet mounted (wall mounted), protection level: IP65;MDE series transmitters: wall mounted, protection level: IP65 |
Product Certification | BSD series:9001,SIL3;MDE series:9001,SIL3 |

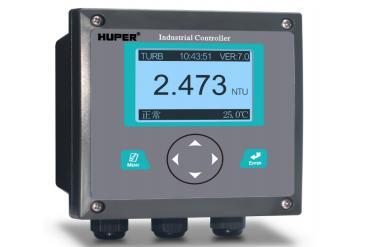

BSD296 Online Turbidity Meter
Product Overview
BSD296 online turbidimeter is a microprocessor-based online water quality monitoring and control instrument. Online turbidity meter is designed for measuring the turbidity of municipal wastewater, industrial wastewater treatment process, water plant and other water inlet and outlet and industrial online monitoring instrument.
Product Features
Intelligent menu operation |
Data logging |
4-20mA/RS485 Multiple connection methods |
Three relay control switches |
High limit, low limit, hysteresis control |
Password protection to prevent misoperation by non-staff |
Manual and automatic temperature compensation |

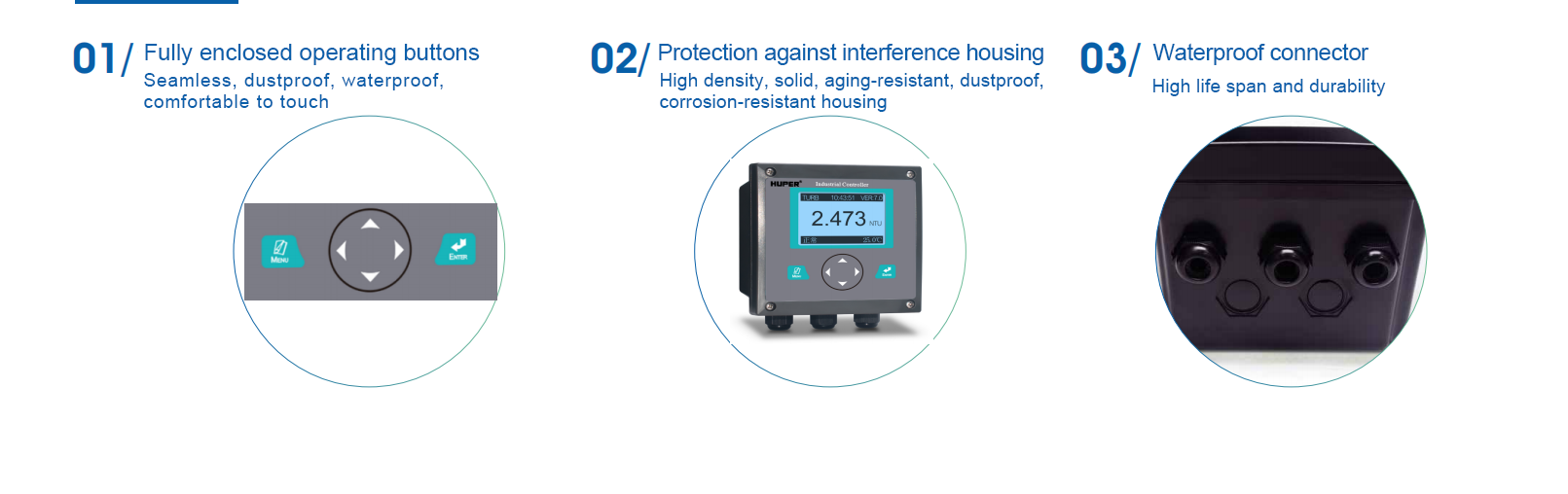

Structural Demonstration

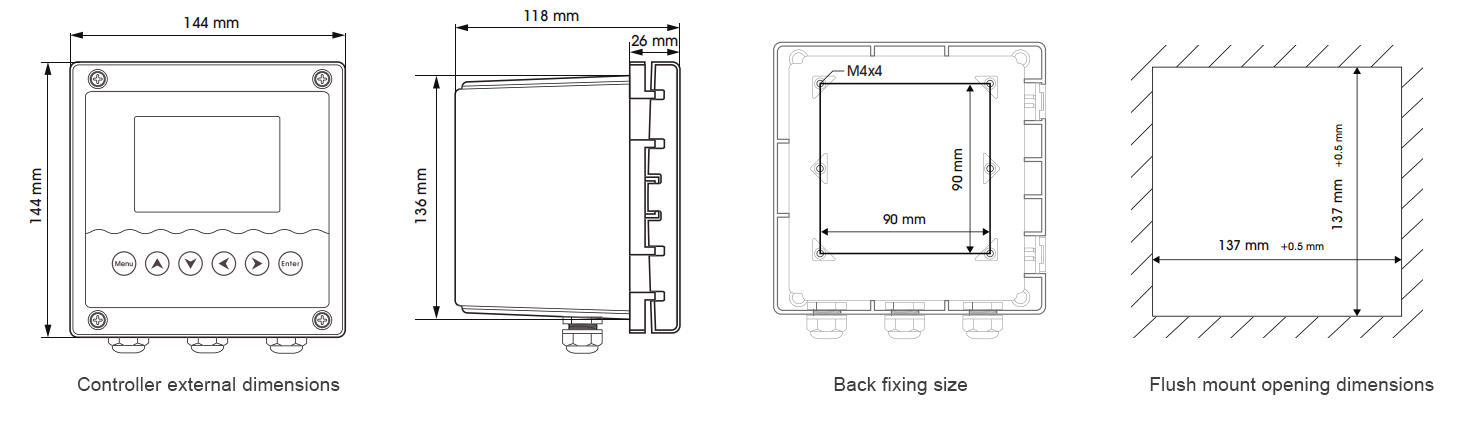

Instrument Size
Performance indicators
Parameters | Configuration |
Measuring range (according to electrode) | 0.001~9999NTU |
Unit selection | NTU, mg/L |
Resolution | 0.001/0.01/0.1/1NTU (according to sensor range) |
Three relay control contacts | 5A 250VAC, 5A 30VDC |
Power supply (optional) | 85~265VAC±10%,50±1Hz, power≤3W; or 9~36VDC, power:≤3W |
2-way current output | 0/4~20mA(load resistance<500Ω); 20~4mA(load resistance<500Ω) |
Communication output | RS485 Modbus RTU |
External Dimension | 144*144*118mm |
Hole size | 137*137mm |
Protection class | IP65 |
Installation | Panel mounted, wall mounted, pipe mounted |
Instrument weight | 0.8kg |
Ambient Temperature | -10~60℃; Relative humidity:≤90%; No strong magnetic field interference except the earth's magnetic field; Password protection to prevent non-staff operating errors |
Field of application
![]() |
![]() |
![]() |
Chemical plants | Sewage plants | Monitoring stations for sewage enterprises |
Digital Sensor Series

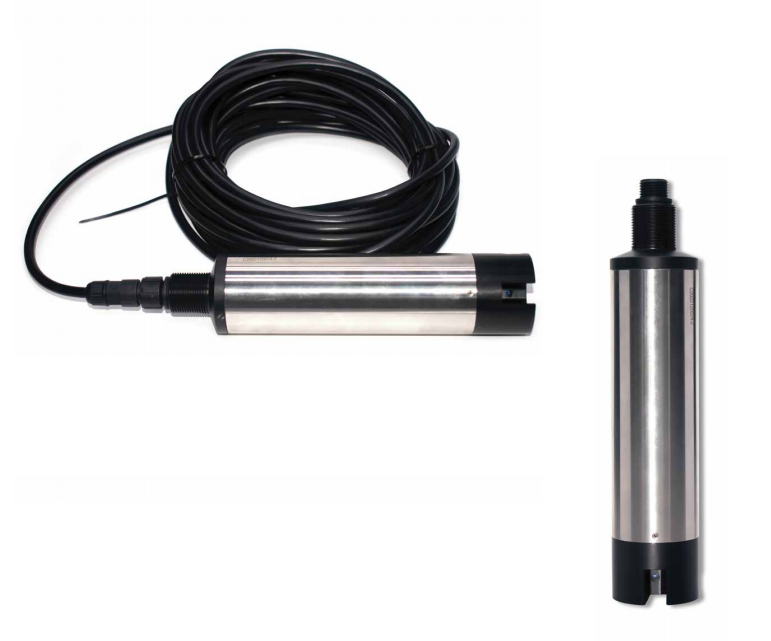

PCM238-820D
HUPER Digital Turbidity Sensor
Product Overview
PCM238-820D Digital Turbidity Sensor: The sensor is ruggedly constructed for use in a variety of environments. The sensor is made of chemical-resistant polymer material, using transmitted light detection technology, strong anti-interference ability, high stability, IP68 protection level, can be directly immersed in water measurement. Application areas: municipal sewage, water, industrial water treatment.

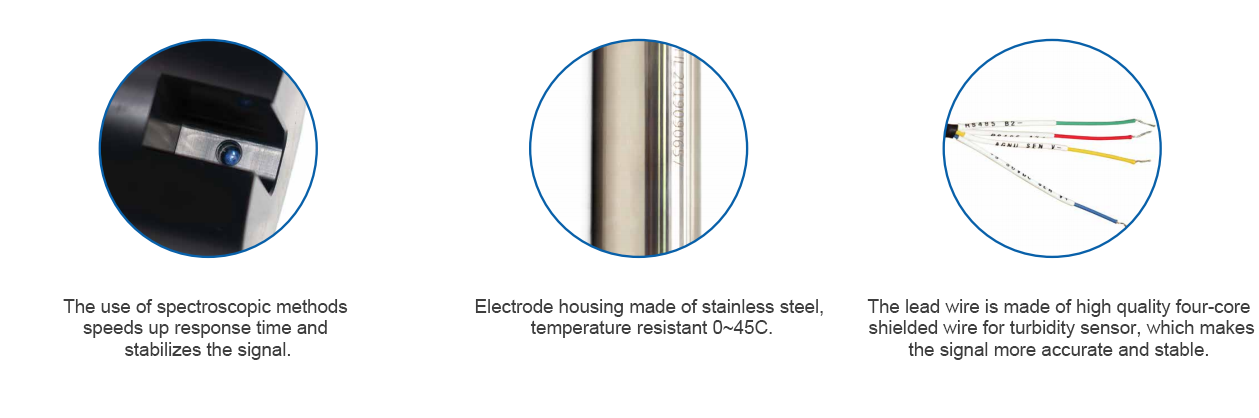

Product Features
Product Installation
Product Dimension
Performance indicators
Parameters | Configuration |
Power supply/output | 9-36VDC/RS485 MODBUS RTU |
Measurement Method | 90° Infrared |
Dimension | Diameter 50mm*Length 223mm |
Housing Material | POM+316 stainless steel |
Waterproof grade | IP68 |
Measuring Range | 0.01-400 NTU |
Measuring accuracy | ±5% |
Pressure range | ≤0.2Mpa |
Measuring temperature | 0 to 45℃ |
Calibration | Standard liquid calibration, water sample calibration |
Cable length | Standard 10 meters cable, can be extended to 100 meters |
Mounting thread | G3/4 |
Scope of application | General applications, river, lake, environmental protection, etc. |
