Sludge interface meter BSD537+PST835
Keywords:Water Quality Instrument丨Environmental monitoring Instruments
Sludge interface meter BSD537+PST835 Details
Product Parameter
Model | BSD537+PST835 |
Name | Sludge interface meter |
Brand | Huper |
Product Name | Mud level gauge Sensor |
Electrode Type | Analog Electrode |
Product Model | PST835 |
Adaptive Controller | BSD537 MDE831 |
Range | 0.2-12M |
Shell Material | PTFE+SS304 |
Principle of Measurement | ultrasonic |
Temperature Range | -25-80C |
Pressure Range | 0-0.3Mpa |
Temperature Sensor | without |
Mounting Thread | G3/4" |
Installation Methods | Input support (UPVC material: ST5, stainless steel material: SL3-551,SL3-550) |
Wire Length | 5M,10M,15M,20M,producible |
Cable Connector | Wire boring tin,Y insert, straight pin,BNC |
Product Certification | 9001 |
Product Parameter
Product Parameter
BSD537 ultrasonic sludge interface meter (mud level meter) is a microprocessor with water quality online monitoring and control instrument, in the sewage treatment of sedimentation tanks, two sedimentation tanks, sludge thickening tanks of the sludge interface determination; water plant sedimentation tank mud level determination, water supply plant (sedimentation tank), sand washing plant (sedimentation tank), electric power (mortar sedimentation tank)
Product Features
1、Intelligent menu operation
2、Data logging
3、4-20mA/RS485 Multiple connection methods
4、Three relay control switches
5、High limit, low limit, hysteresis control
6、Password protection to prevent misoperation by non-staff
7、Manual and automatic temperature compensation

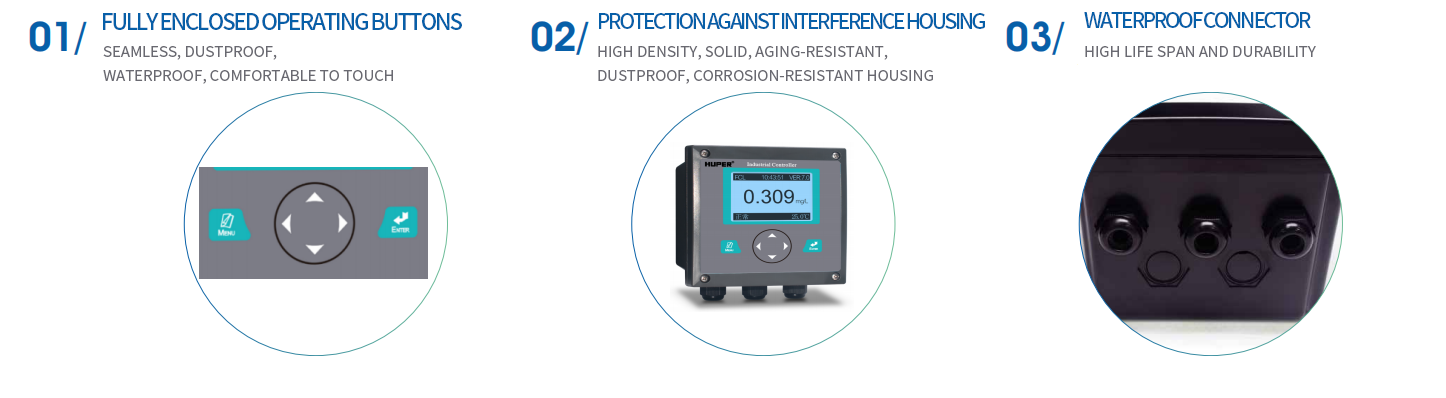

Structural Demonstration
Performance indicators
Parameters | Configuration |
Measuring range | 0.2-12m Temperature: 0-50°C |
Measuring accuracy | ±0.5%F.S Temperature: ±0.3°C |
Temperature compensation | 0-100°C Automatic |
Resolution | 0.001/0.01m Temperature: 0.1°C |
Relay | Three groups 5A 240VAC/5A 28VDC or 120VAC |
Power supply | 85~265VAC±10%,50±1Hz, power≤3W; 9~36VDC, power:≤3W |
Current output | 2-way 4-20mA |
Communication output | RS485 Modbus RTU |

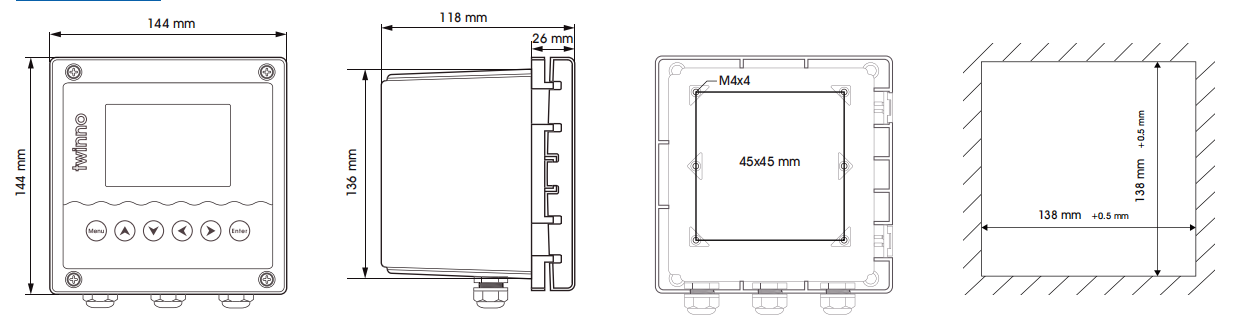

External Dimensions | 144*144*118mm |
Hole Size | 138*138mm |
Protection class | IP65 |
Installation | Panel or wall mounted |
Instrument weight | 0.8kg |
Ambient Temperature | -10~60℃; Relative humidity:≤90%; No strong magnetic field interference except the earth's magnetic field; Password protection to prevent non-staff operation errors |

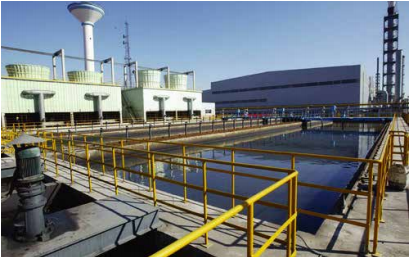

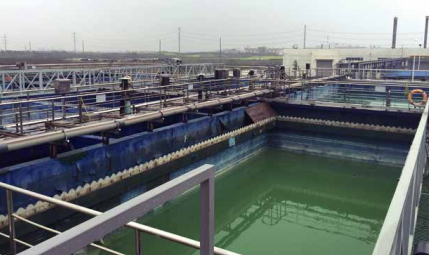

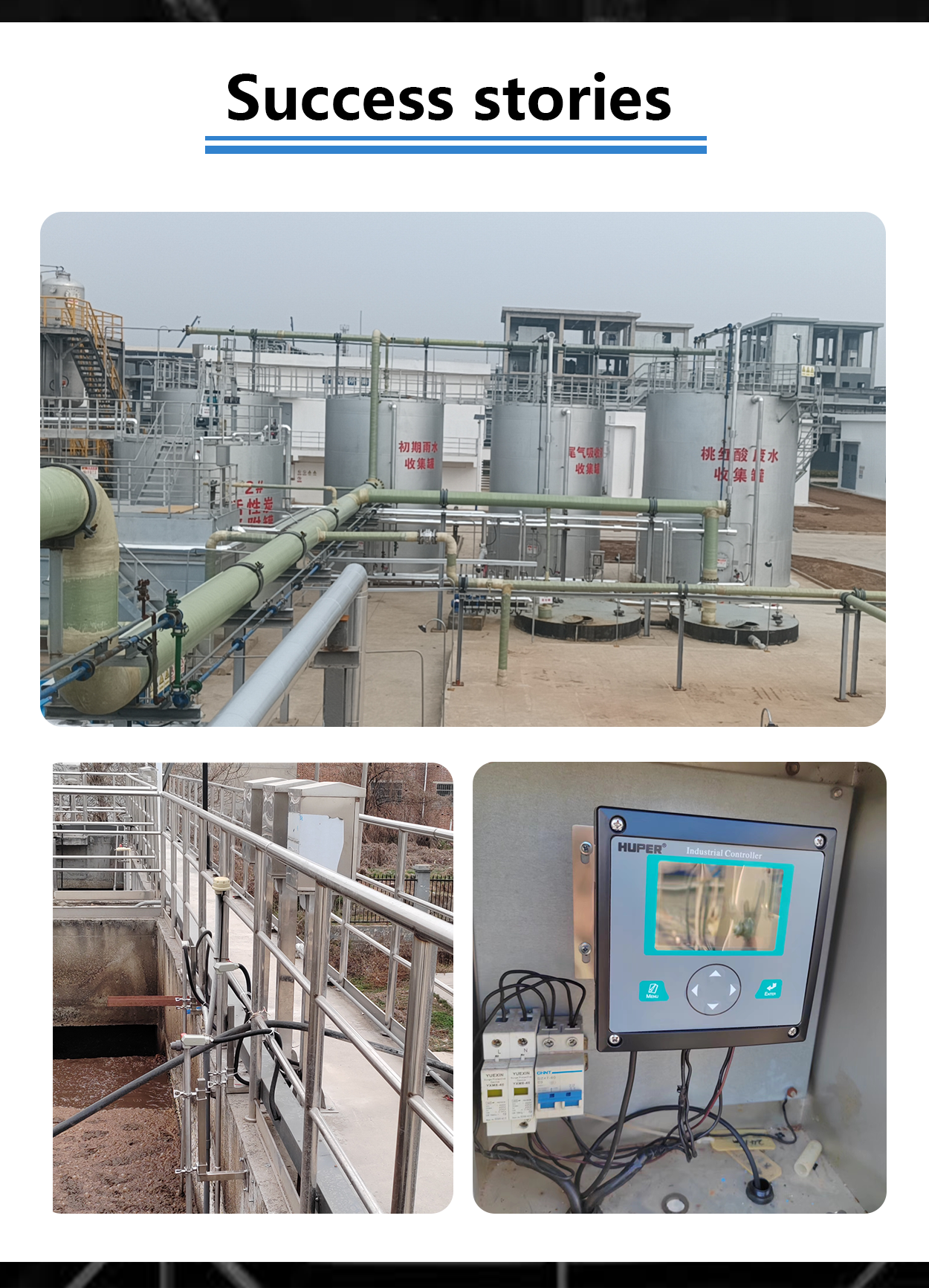

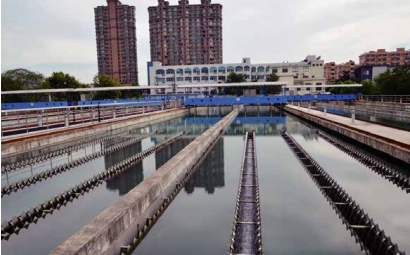

Field of application
![]() |
![]() |
![]() |
Chemical plants | Sewage plants | Monitoring stations for sewage enterprises |

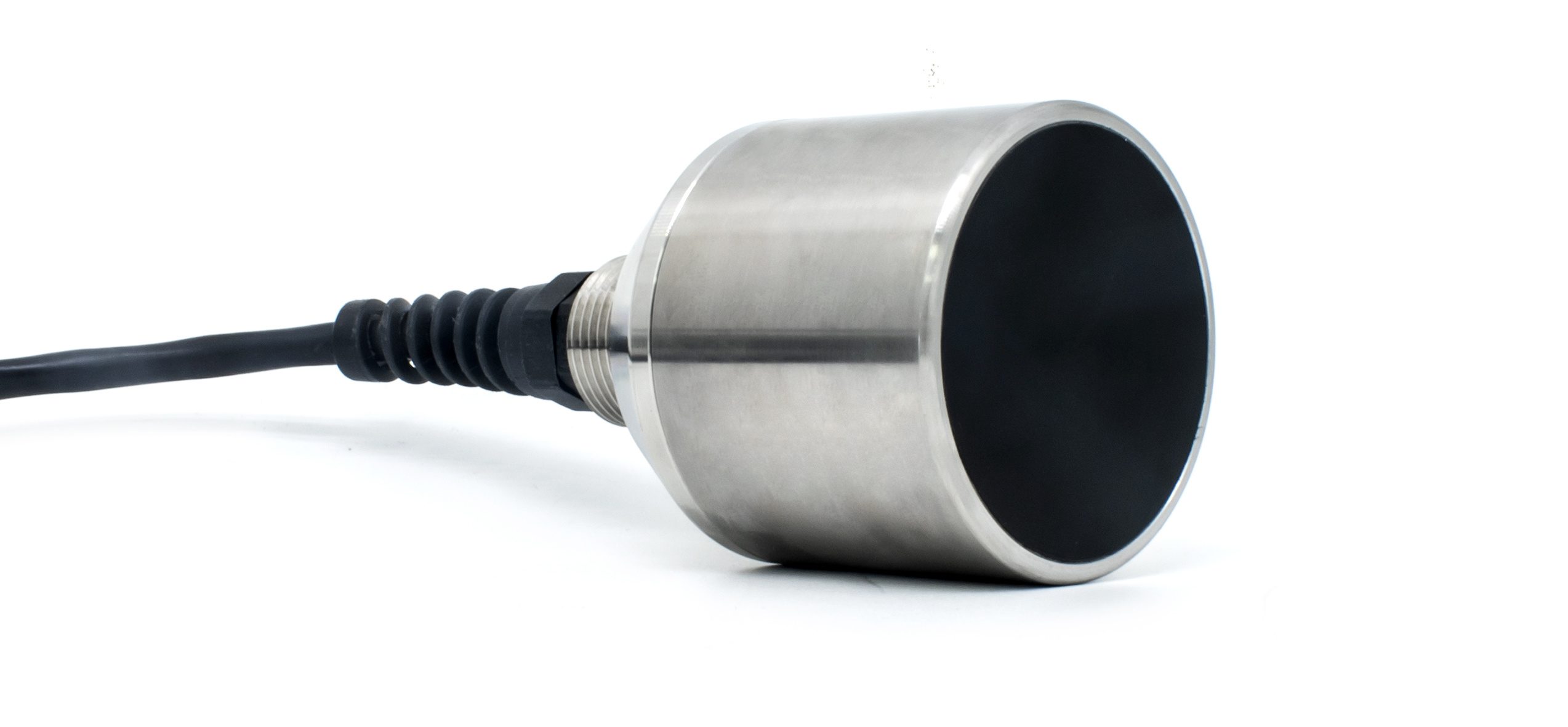

Ultrasonic Sludge Interface (Mud Level) Probe Type TSS807J
Measuring method: ultrasonic
Shell material: 304 or customized
Waterproof grade: IP68
Measuring range: 0.2-12m
Measuring blind zone: <20cm
Measurement accuracy: <0.3%F.S
Ambient temperature: -25 to 80°C
Cable length: standard with 10 meters of special cable, can not be added in the middle of the wiring
Probe Dimensions

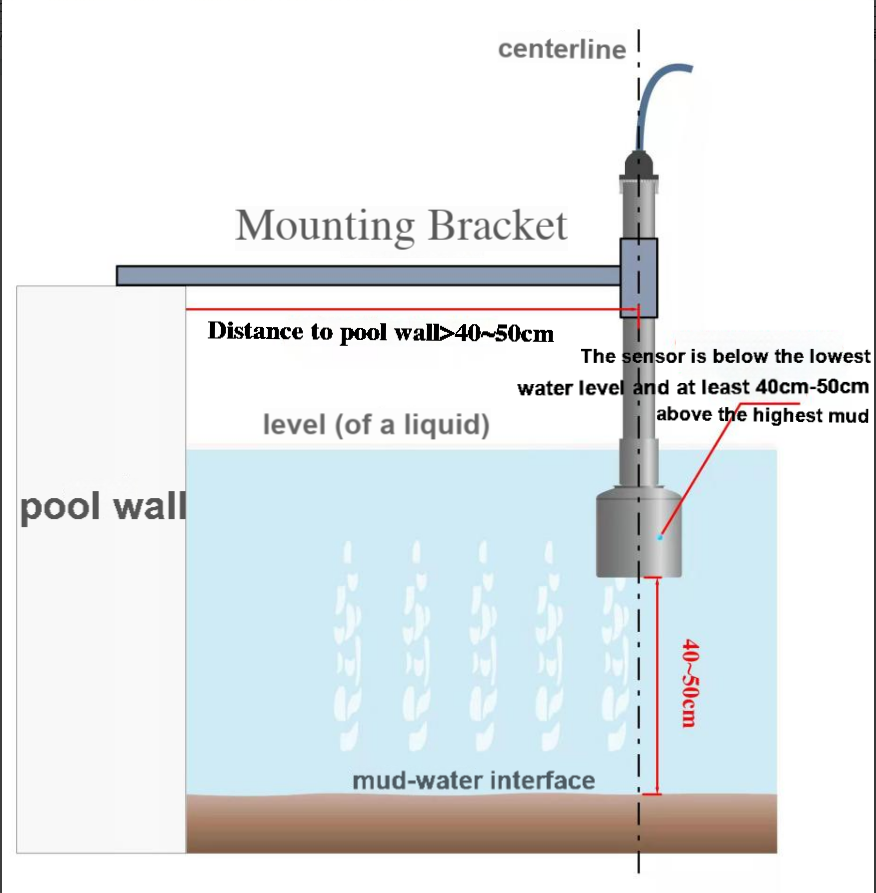

Probe Installation Diagram

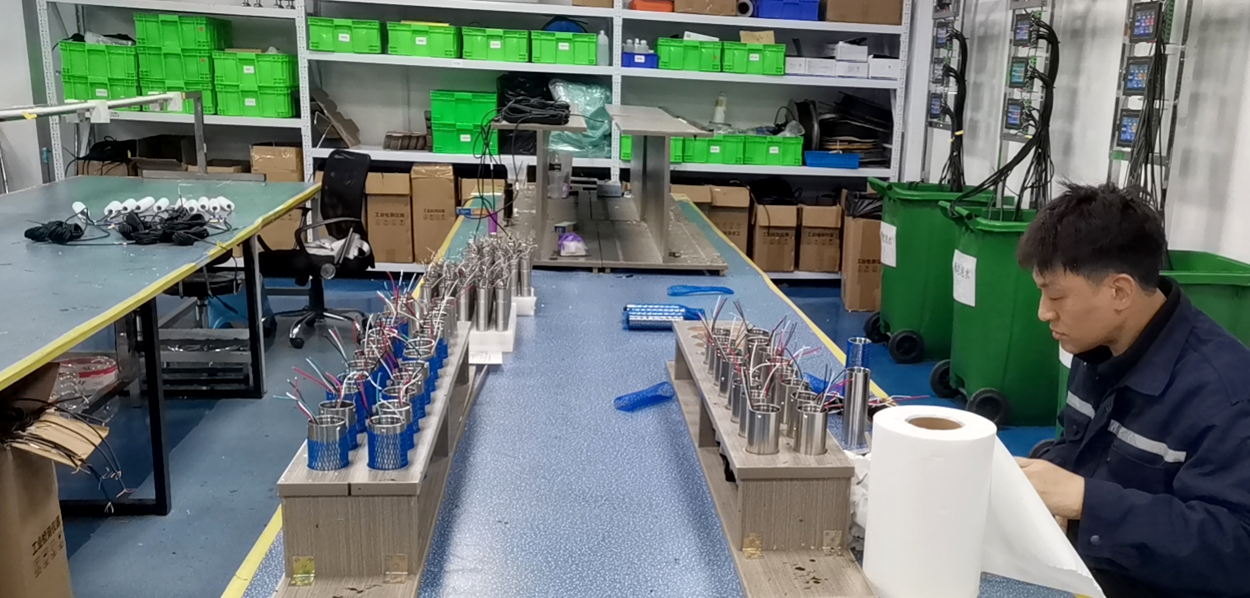

Company Profile
