Suspended solids(Sludge) concentration meter
Keywords:Water Quality Instrument丨Environmental monitoring Instruments
Suspended solids(Sludge) concentration meter Details
Product Features
▪ Intelligent menu operation
▪ Data recording
▪ 4-20mA/RS485 multiple connection methods
▪ Manual and automatic temperature compensation
▪ Three relay control switches
▪ High limit, low limit, hysteresis amount control
▪ Password protection to prevent non-staff misoperation

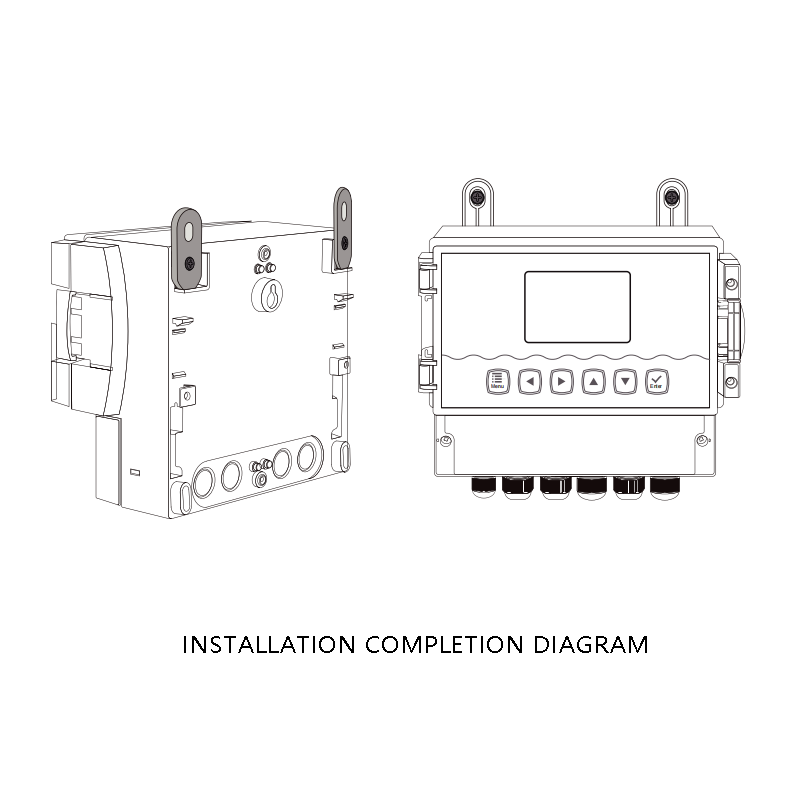

Structural Demonstration
01/ Fully enclosed operation button Seamless, dustproof, waterproof, comfortable to touch
02/Interference-proof housing High density shell, solid, aging resistance, dustproof, corrosion-resistant
03/Waterproof connector High life expectancy and durability

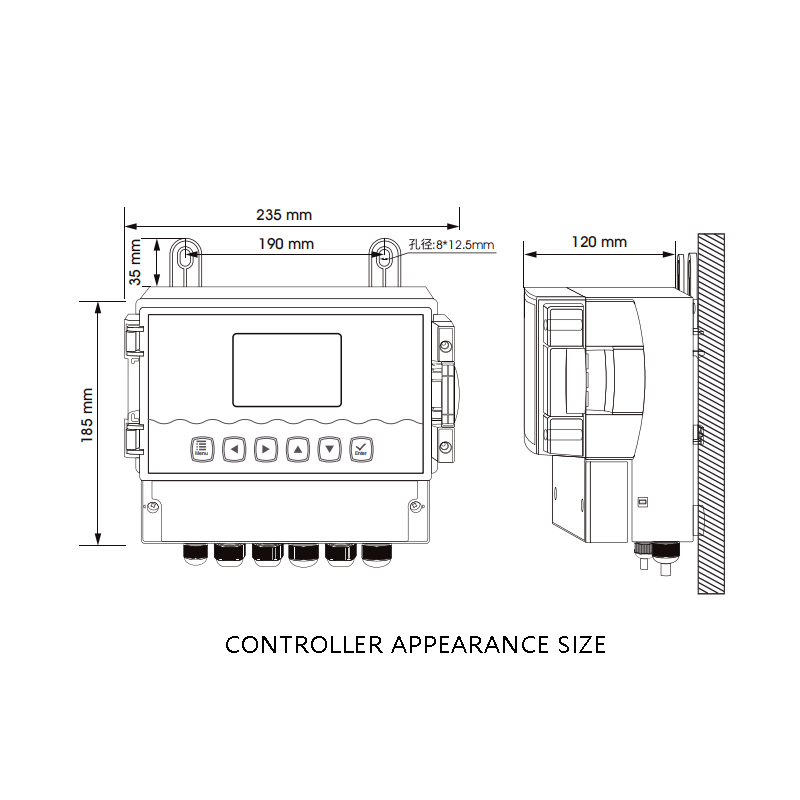

Instrument Size
![]() |
![]() |
Performance indicators
Parameters | Configuration | ||||||||||||
Measuring range | 0 to 99999mg/L | ||||||||||||
Measuring unit | mg/L, g/L | ||||||||||||
Resolution | 0.001/0.01/0.1/1mg/L; 0.01g/L (according to sensor range) | ||||||||||||
2 current outputs | 0/4 ~ 20mA ( load resistance <500Ω); 20 ~ 4mA ( load resistance <500Ω) | ||||||||||||
Communication output | RS485 MODBUS RTU | ||||||||||||
Three relay control contacts | 5A 250VAC, 5A 30VDC | ||||||||||||
Power supply (optional) | 85 ~ 265VAC±10%,50±1Hz, power ≤3W; or 9 ~ 36VDC, power: ≤3W | ||||||||||||
Overall Dimension | 235*185*120mm | ||||||||||||
Installation | Wall-mounted | ||||||||||||
Protection class | IP65 | ||||||||||||
Instrument weight | 1.5kg | ||||||||||||
Working Environment | Ambient temperature: -10~60℃; Relative humidity: not more than 90%; No strong magnetic field interference except the earth's magnetic field |

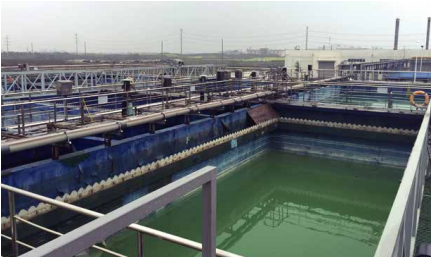

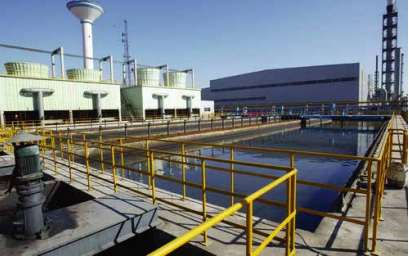

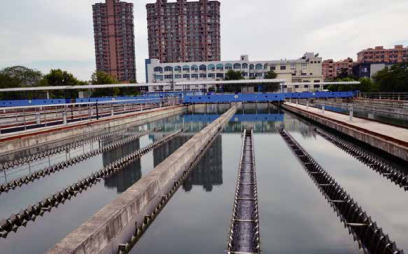

Field of application
chemical plant |
water treatment plant |
Sewage enterprise monitoring stations |

Company Profile
Huper Labsun Instrument (Jiangsu) Co., Ltd. is a professional company dedicated to the field of environmental monitoring and related monitoring instruments, process control instruments and other products. The company's instrument products are more complete than the peers, covering a wide range. Mainly includes: water quality process instrument series, various transmitter series, level, liquid level detection series, flow meter series, switch slip ring series, gas detection series, water analysis instrument series, flue gas related products, etc.
We know that the pursuit of perfect quality and service, pay attention to meet the challenge has been the root of the continuous development of modern environmental protection. Enterprises can only develop better under the premise of protecting the environment. Therefore, since the establishment of our company, we will protect the environment on which we live as the first purpose of business establishment, in order to make the sky more blue, make the mountains more green, make the water more clear silently do their own efforts. The excellent advanced technology and customers to achieve a win-win goal, and constantly explore a win-win road to environmental protection and efficiency.
Company vision: To become an internationally renowned water quality testing solution service expert!
Certifications






FAQ
Q1: What about your delivery time? And how do you delivery the goods?
A: Yes, We design and manufacture our products by ourselves. We can make OEM according to your requirements, including packing, logo print etc.
Q2: Can you offer OEM or design services?
A: Yes, We design and manufacture our products by ourselves. We can make OEM according to your requirements, including packing, logo print etc.
Q3: How does your factory do regarding QC?
A: Quality is priority. We have many years of experience in the water treatment industry.We always consider quality as the most important thing during the whole production process.Our factory has gained ISO9001.
Q4: What's your main producs?
A: Multi parameter, PH / ORP Meter, electrical conductivity meter, dissolved oxygen meter, turbidity meter, residual chlorine analyzer, COD/BOD analyzer, level meter, flow meter and other water quality analyzer.
Q5: Where is it often used?
A: our products are widely used in Wastewater treatment, Thermophilic Fermentation, Pow plant of steam and water analysis system,Drinking water plant, Swimming pool, Shrimp and fish farming. we provide a complete water quality monitoring solution.
